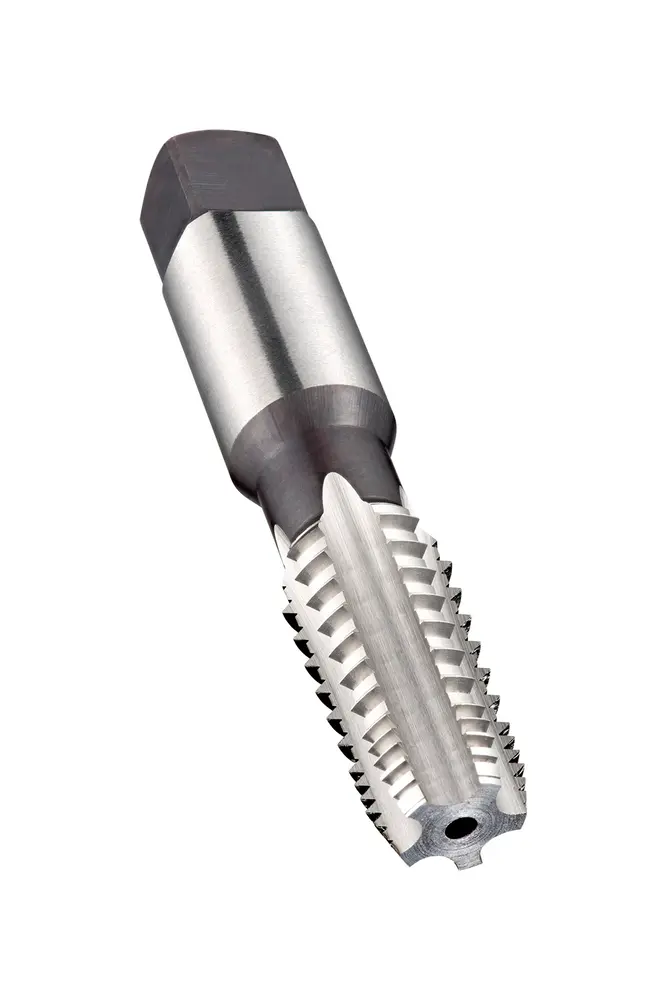

Straight flute tap with chamfer form c with a 2-3xp semi-bottoming lead, for national pipe taper thread npt 1″ with 11. 5 tpi and normal class of fit, dimensions according to ~ansi b94. 9 standard with 28. 6mm shank and 21. 4mm square drive, hss with bright finish for 1. 5xd through or blind hole threading in alloy steel
–
Brand: Dormer Pramet
–
EDP: 5977656
–
